Elecbrakes Bluetooth Electric Brake Controller

Elecbrakes is an Australian manufactured, designed and invented Bluetooth electric brake controller.

• Proportional braking
• Multiple braking programs
• Device stored settings
• Urethane resin encased electronics
• Water proof
• Shock proof
• Easy mounting
• Easily wires into the trailer wiring circuits
• Non directional mounting

The Elecbrakes Controller ELBC2000 has been designed for Australian conditions.

The ELBC2000 employs high-speed microprocessors and various sensors which continuously monitor driving conditions at 1000x per second. For communication we carefully selected components to provide long range, reliable connections eliminating dropouts under normal conditions.

The ELBC2000 is housed in a tough fibre reinforced housing with the electronics fully encased in urethane, making the unit 100% dust and water proof. The ELBC2000 operates with 12v or 24v Tow vehicles and comes with a 2-year warranty.

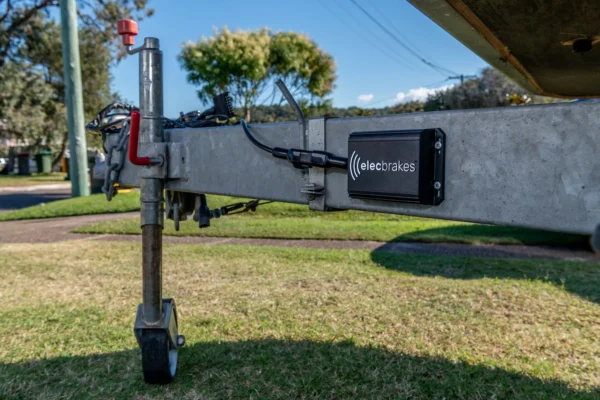

There is no need to modify the tow vehicle with Elecbrakes. The System has a controller that can be fitted to the trailer and easily wired into existing electrical circuits. Once installed you can use the Elecbrakes App on your smart phone to monitor, change settings and control the trailer brakes.

The smart Phone App has been developed as a Driving Aid and requires minimal input from the driver to set the brake system to the driving conditions. The Elecbrakes App will provide you with live data and historical information that can assist in defining service intervals for trailer maintenance. The controller’s firmware can easily be updated through the Elecbrakes App meaning you will always have the most up to date brake system on the market. Elecbrakes allows a trailer to comply with ADR38/03 and VSB1* Ensuring you can tow your trailer with any suitable tow vehicle easily, safely and legally in All States and Territories of Australia.

* To Comply with ADR38/03 and VSB1 the smart Phone App must have Bluetooth connection with the ELBC2000 controller, the
smart phone MUST be securely mounted within the drives reach and connected to a power source

Specifications:

• Parameter Notes Min Max Units
• Supply voltage Nom. 12v to 24v 10.0 32.0 Volts
• Output load* 0.75 – Ohms
• Output current** 0 16 Amps
• Output voltage 0 12 Volts (RMS)
• Radio Freq 2.4 GHz
• Range >30 Mtrs
• Operating temp -20 +85 Celsius
• Water Submersion 1mr >24 Hours
• * 4x 3.0 Ohm brake magnets wired in parallel.
• ** Controller intelligently shares load with multiple supply circuits

Weight 0.6200 kg

Dimensions 26.0000 × 120.0000 × 4.5000 cm

This product comes with 2-year warranty.
